Diamond Dressing Tools
Rotary dressers, natural diamond dressers, and custom truing tools.

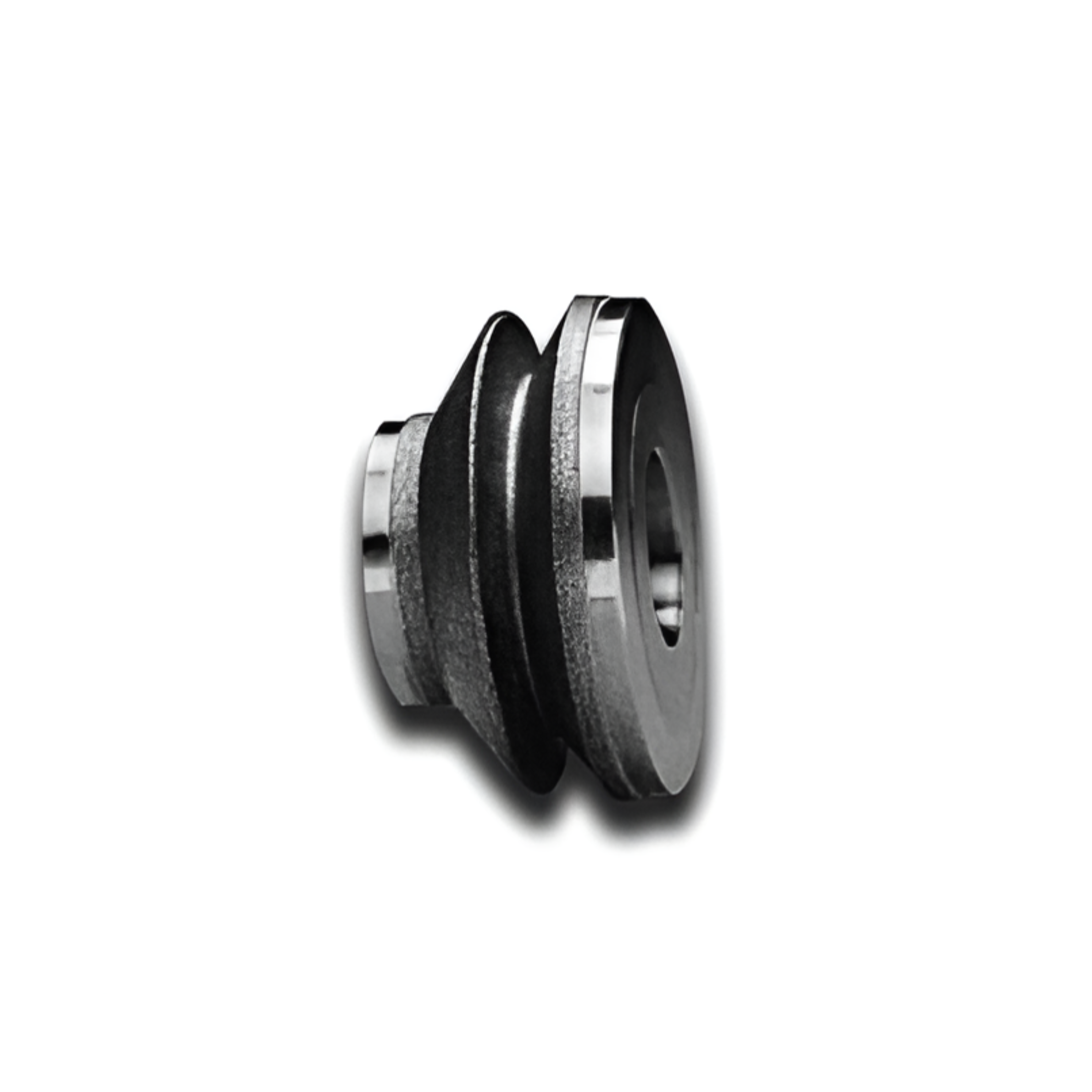

Diamond Rotary Dressers
High-precision solutions for traverse and plunge dressing applications.
UniGrit Technologies offers high-quality rotary diamond dressers designed for traverse dressing and plunge dressing, capable of achieving radii as small as 0.100 mm and profile lines down to 0.002 mm. Depending on the requirement from intricate profiling to robust, general-purpose dressing different dresser constructions are available to
balance accuracy, durability, and cost.
Rotary Dresser Types
- Reverse Plated Dressing Rolls
- CVD Sintered Dressing Rolls
- CVD Disc Dressers
- CVD Form Dressers
- Handset Sintered Dressing Rolls
- Random Set Sintered Dressing Rolls
- Plunge Form Rolls
Reverse Plated Dressers
The High-Accuracy Dresser
Handset Sintered Dressers
The Robust Dresser
CVD Sintered Dressers
The High-Performance Dresser
Random Set Sintered Dressers
The Flexible Dresser
Diamond Stationary Dressers
Durable Dressing Solutions
Type 1 – Reverse Plated Dressers
The High-Accuracy Dresser
Reverse plated dressers are chosen where maximum profile accuracy and superior surface finish are essential. Diamonds are deposited onto mould walls through centrifugal dispersion and secured by a stable electro-deposition process, ensuring dimensional precision unaffected by shrinkage.
Applications:
- Turbine blades
- Cam grinding
- Bearing industry
- Ball joints
- Needle injectors
Type 2 – Handset Sintered Dressers
The Robust Dresser
The most widely used rotary dresser, handset sintered types are valued for their robustness and adaptability. Diamonds are hand-selected and set in a mould, then bonded in a tungsten-based matrix by sintering. Dimensional allowances are included to compensate for shrinkage, providing consistent tolerance compliance.
Applications
- Turbine blades
- Automotive valves
- Crankshafts
- CNC dressing
Type 3 – CVD Sintered Dressers
The High-Performance Dresser
CVD (Chemical Vapor Deposition) sintered rotary diamond dressers combine extreme thermal stability with resistance to chipping and fracture. They wear uniformly and can be brazed or sintered into dresser bodies. The flexibility of CVD manufacturing allows for a wide range of shapes and grades, giving engineers maximum design freedom.
Benefits:
- Excellent thermal stability and oxidation resistance
- Even wear across dresser length
- High resistance to fracture
- Effective in any dressing orientation
Applications
- Form dressing
- Dressing of CBN grinding wheels
- Applications requiring superior surface finishes
Type 4 – Random Set Sintered Dressers
The Flexible Dresser
Random set sintered dressers are ideal where a combination of openness, tight form, and improved surface finish is required. Diamonds are selectively positioned in vulnerable areas, with remaining zones filled by centrifugal dispersion, creating a durable yet versatile dresser. These can also be quickly manufactured to meet urgent needs.
Characteristics / Features:
- Resin–metal synergy with balanced sharpness and durability.
- Longer lifespan than resin bonds, sharper cutting than metal bonds.
- Controlled chip evacuation and grinding forces.
- Customizable structure for different applications.
Applications
- Automatic valves
- Turbine root forms
- Flute grinding
- Turbine blades
- Cutting tools

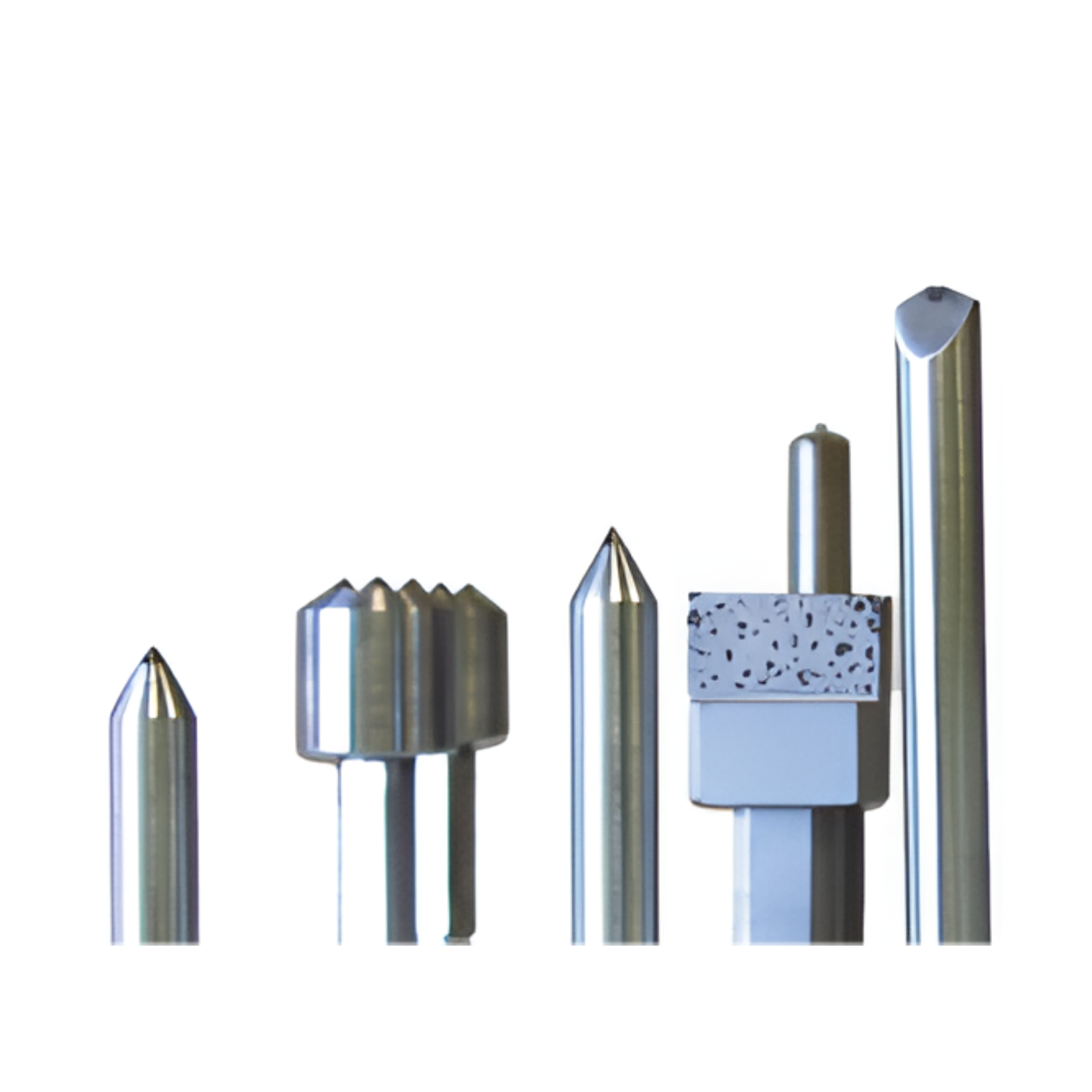

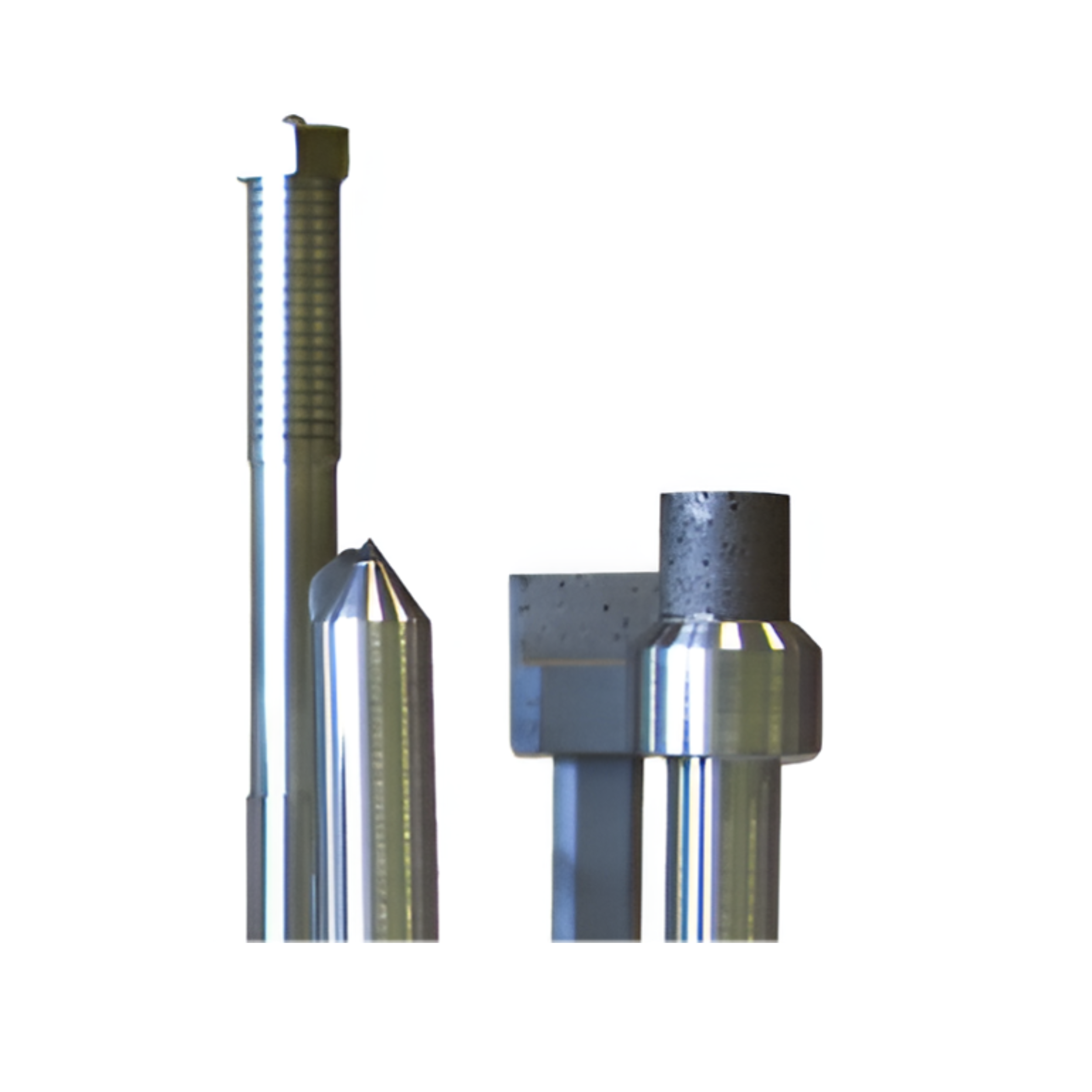

Diamond Stationary Dressers
Extra endurance and long-lasting performance for versatile applications.
Stationary diamond dressers provide durable dressing solutions for a wide variety of grinding applications. With diameters available up to 355 mm (14”), they are designed for both wet and dry grinding environments, offering long life with reduced dressing frequency. The construction allows efficient heat dissipation, ensuring stable dressing performance even under demanding conditions.
Stationary Dresser Types
- Multi-Point Dressers
- Single-Point Dressers
- Blade-Type Dressers
- Diaforms
- Hardness Testers
- Thread Grinding Dressers
Applications
- Aerospace
- Aircraft manufacturing
- Blade & knife production
- Power generation
- Medical instruments and surgical tools
- Cutting tools
- Tool & die industry
- Saw manufacturing
SPEAK TO OUR SPECIALISTS
Choosing the Right Dresser Type
Selecting the right Rotary Diamond Dresser for a specific application requires a deep understanding of multiple interacting factors – such as dimensional tolerances, target surface finish, form geometry, grinding machine configuration, and the characteristics of the grinding wheel. Achieving the perfect balance between performance, precision, and dresser life demands not only advanced technology but also extensive experience.
That’s why UniGrit Technologies, with decades of expertise in designing and manufacturing Custom Diamond Dressing Solutions, stands out as a trusted partner for precision-driven industries.
Our engineering team possesses technical insight and practical know-how to help you identify the most effective dressing solution for your process — ensuring consistency, productivity, and superior grinding results every time.
Contact us for a free consultation and quote.
